The customer of the project has been collecting information on various areas: sales of cars, trucks, buses, trailers; the analysis of the dynamics of macroeconomic indicators, etc., the data is stored in usual databases, but for this project they are merging into a single repository in MS Analisis Services (OLAP cubes). The aim of the project is to provide access to data via the Internet using the browser without losing functionality, which can provide MS Excel.
Before beginning work on the project I had analyzed the market of software components and technologies that could in a convenient way to show the contents of the OLAP cube, as well as on the basis of these data charts. I have considered the following products:
From this set only the components from Developer Express was able to meet the high customer requirements of the project.
The architecture of the project.
The main part of the project is the management block of the OLAP cube.
|
|
|
|
|
|
|

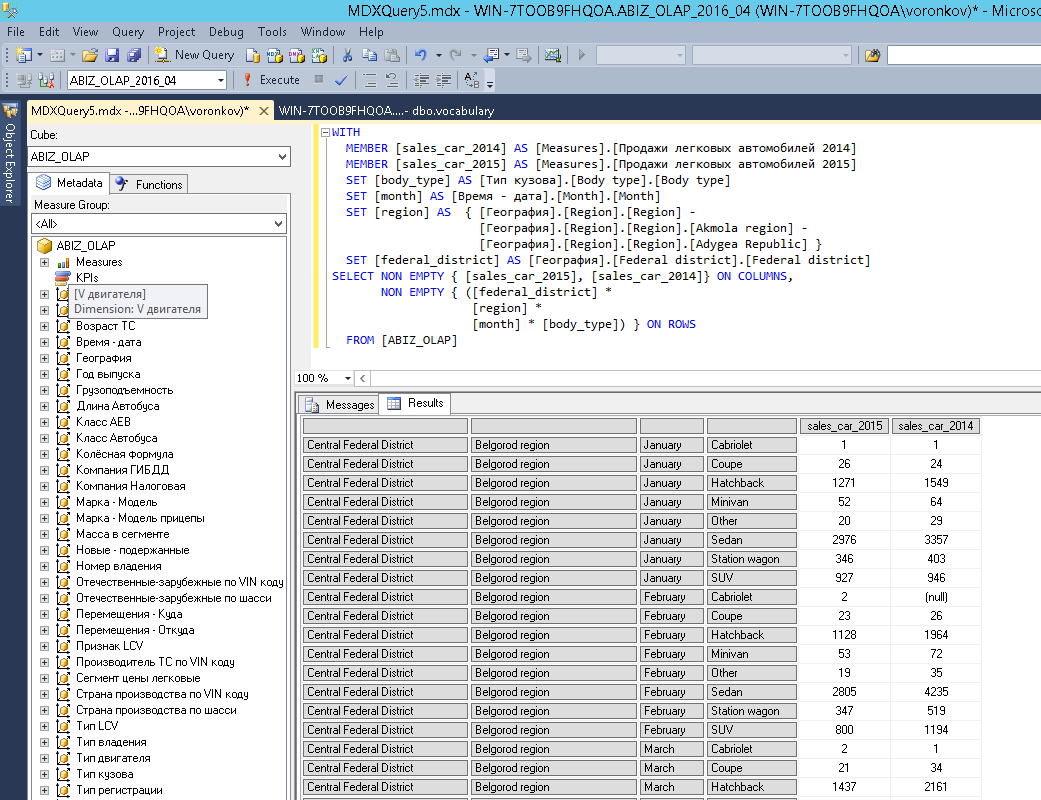

The OLAP cube has of several hundred fields, so they are divided into logical blocks, the structure of these blocks are described using XML and stored in the project database. The user may not have access to all of the blocks, but only to part. If you have access to multiple blocks, there is a Union of fields from which these blocks belong. When requesting data, the user specifies the desired fields to the cube and built a dynamic query in the MDX language. | |

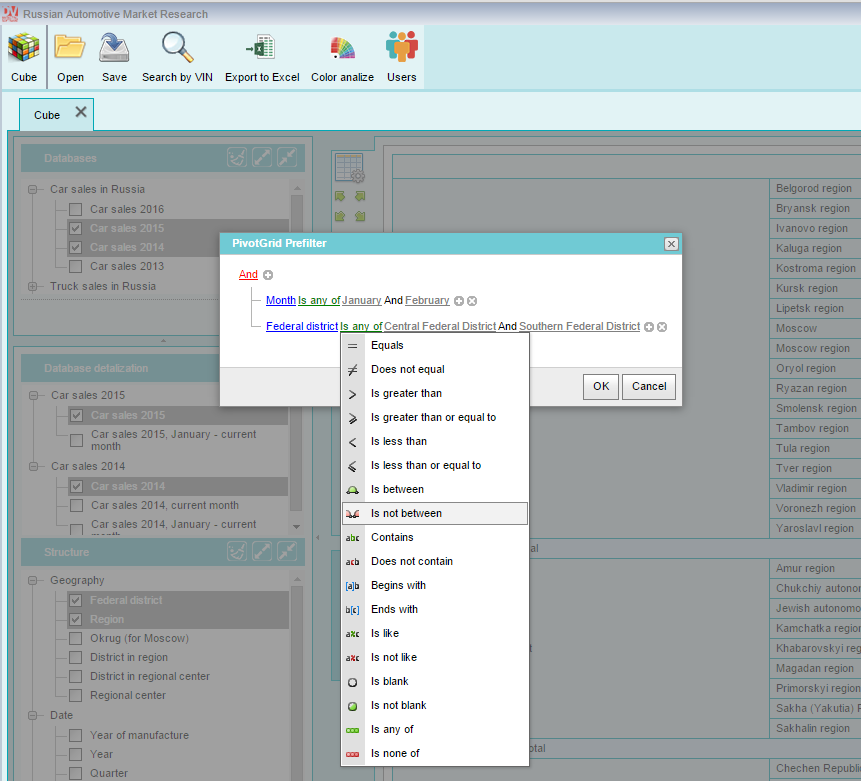

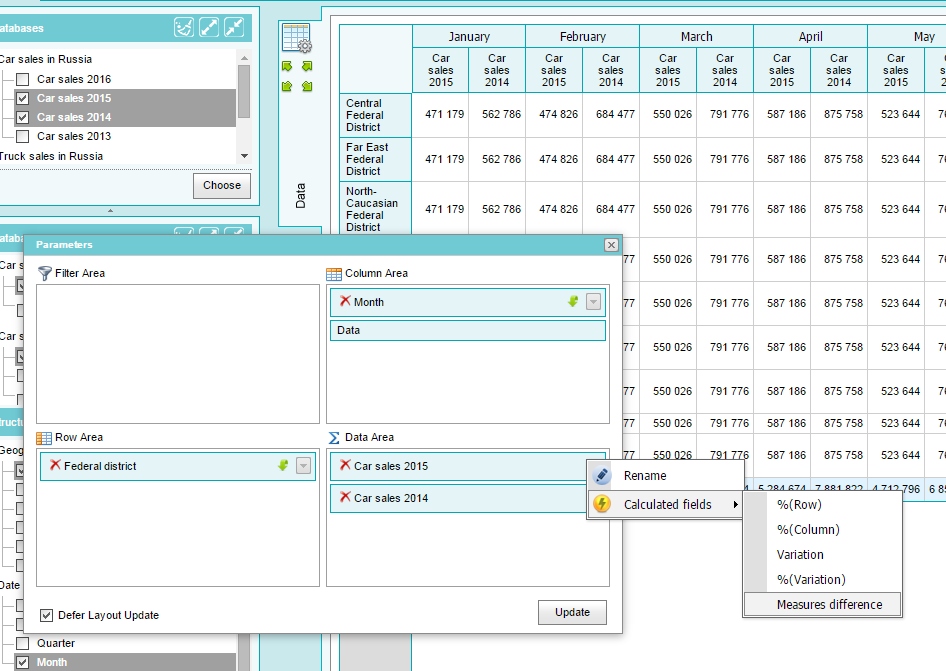

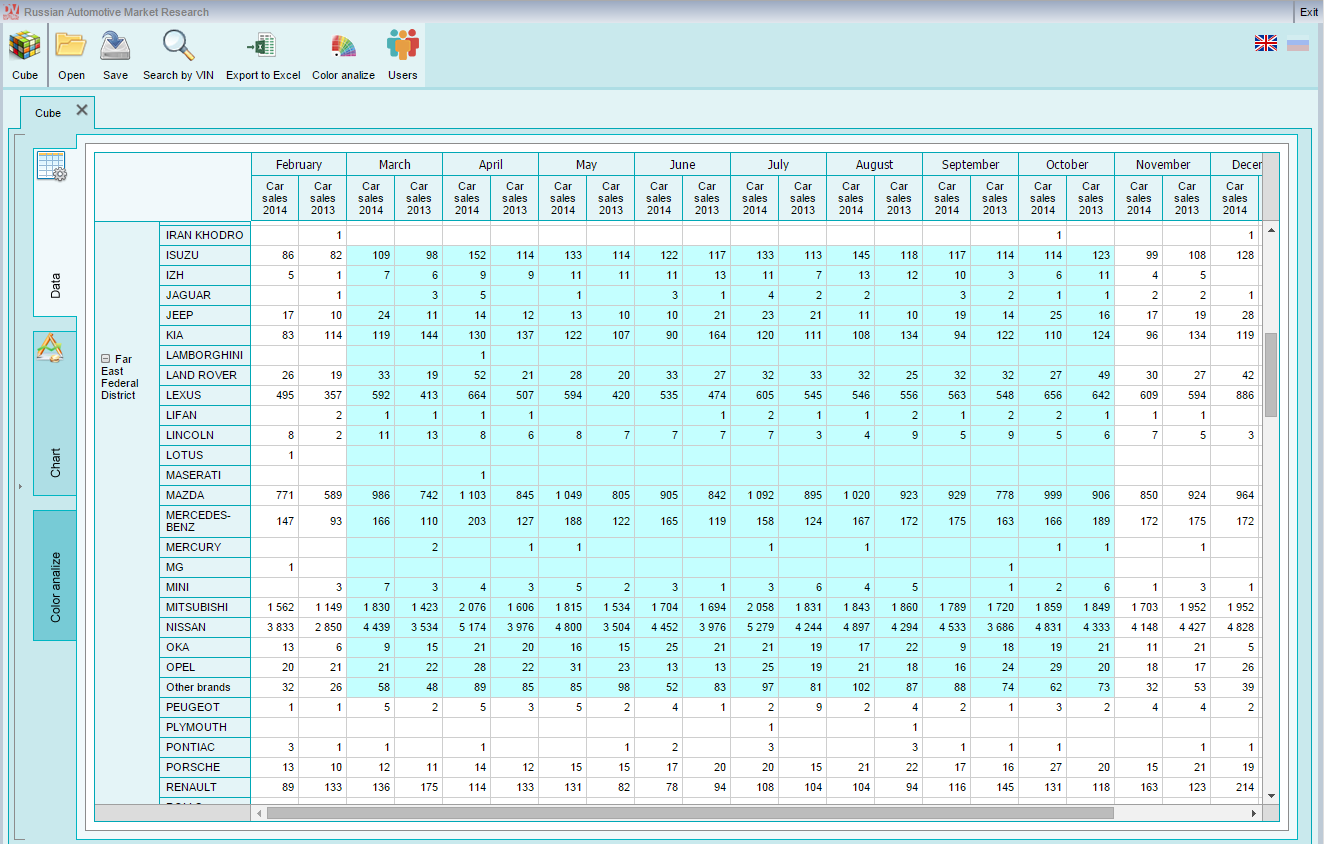

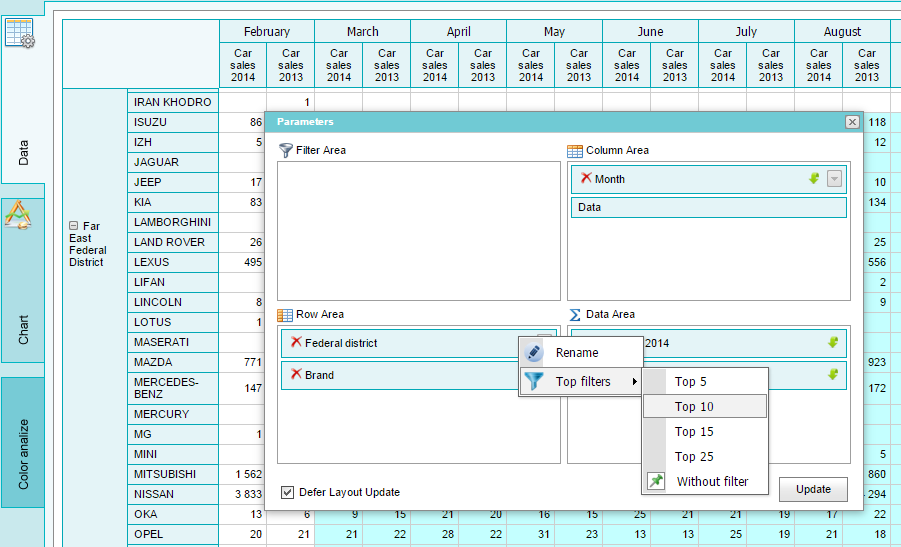

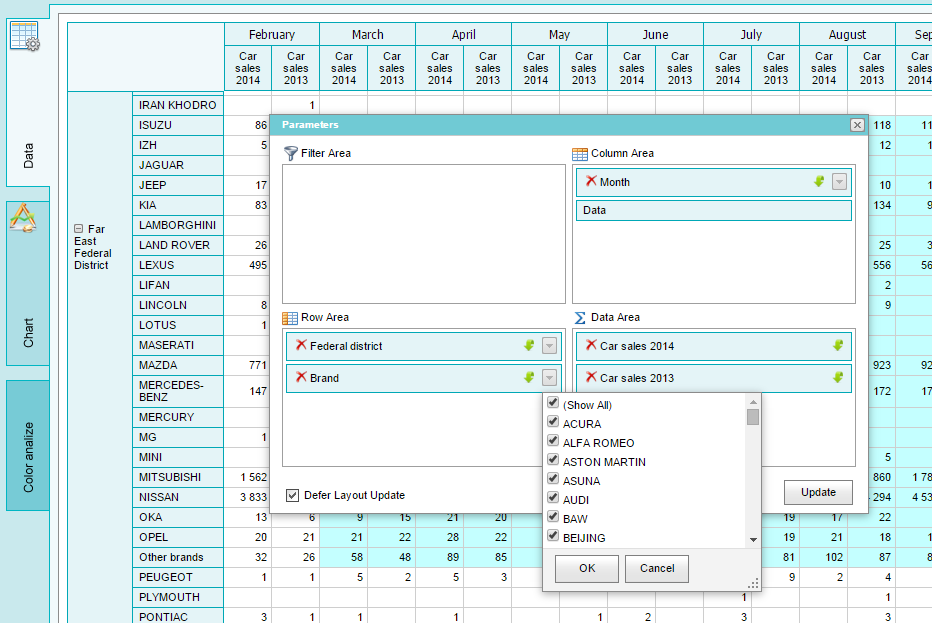

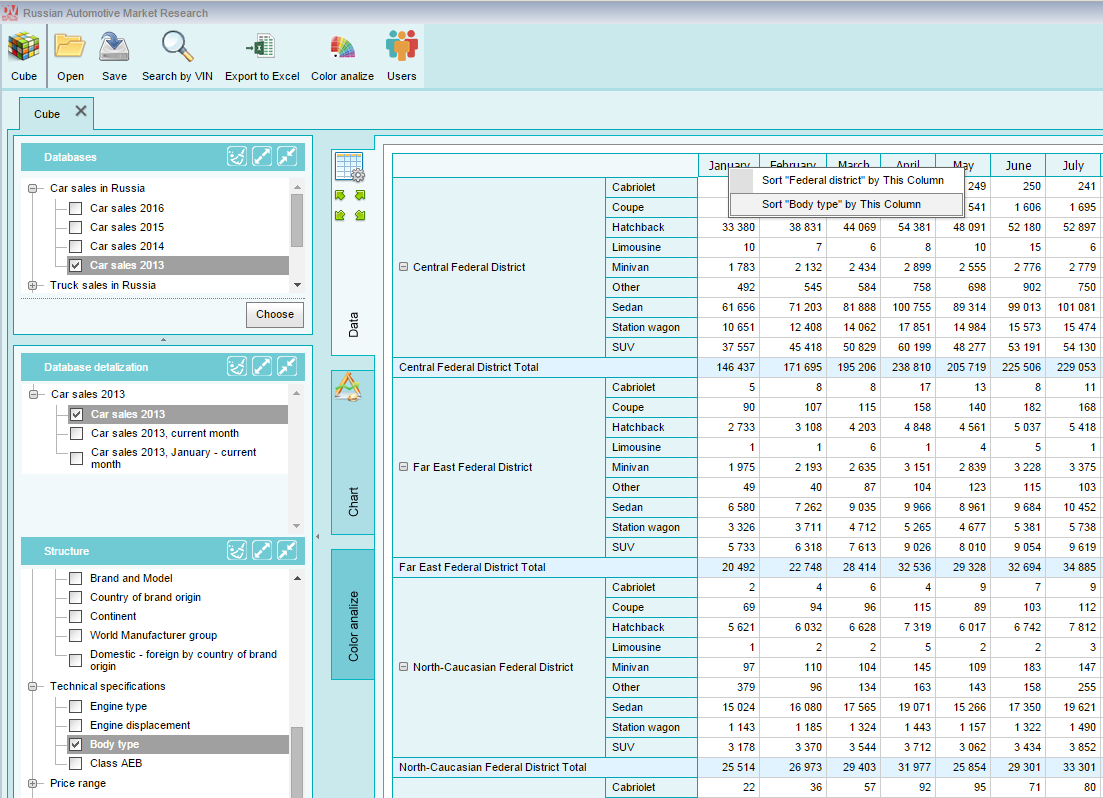

Table management of a cube includes:

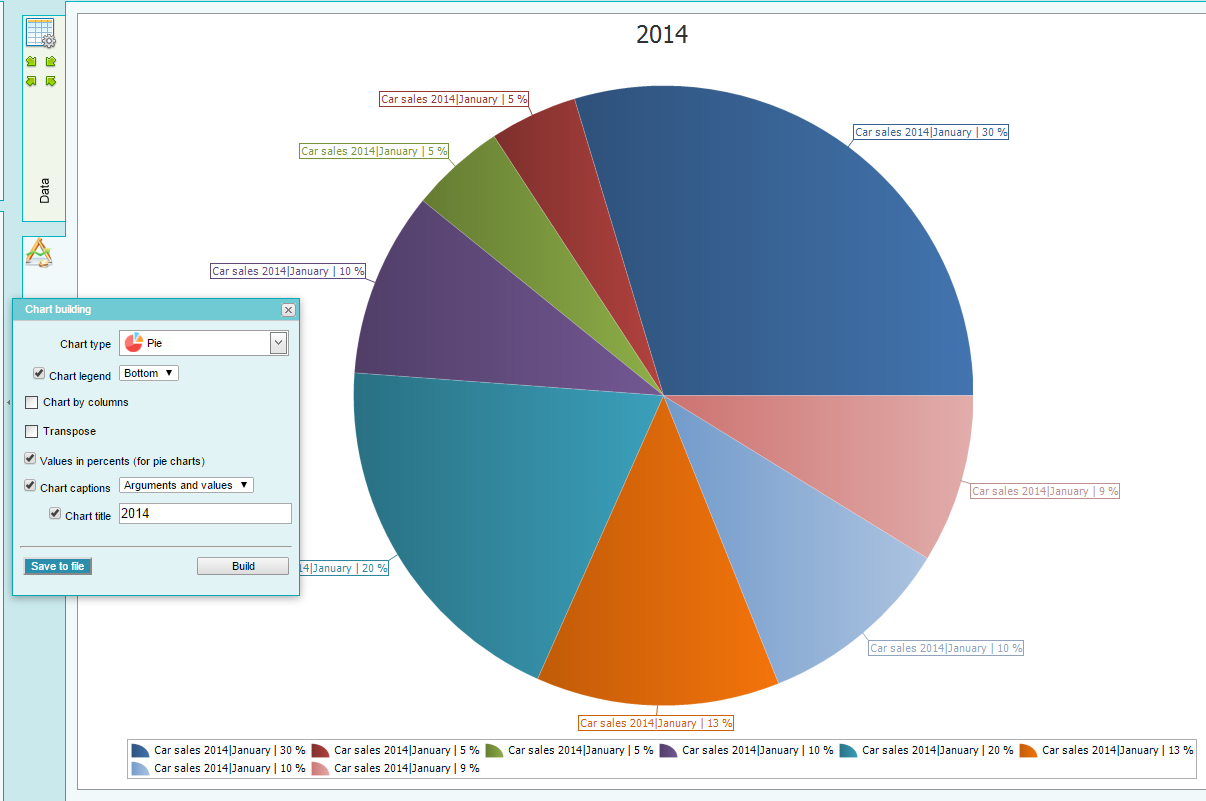

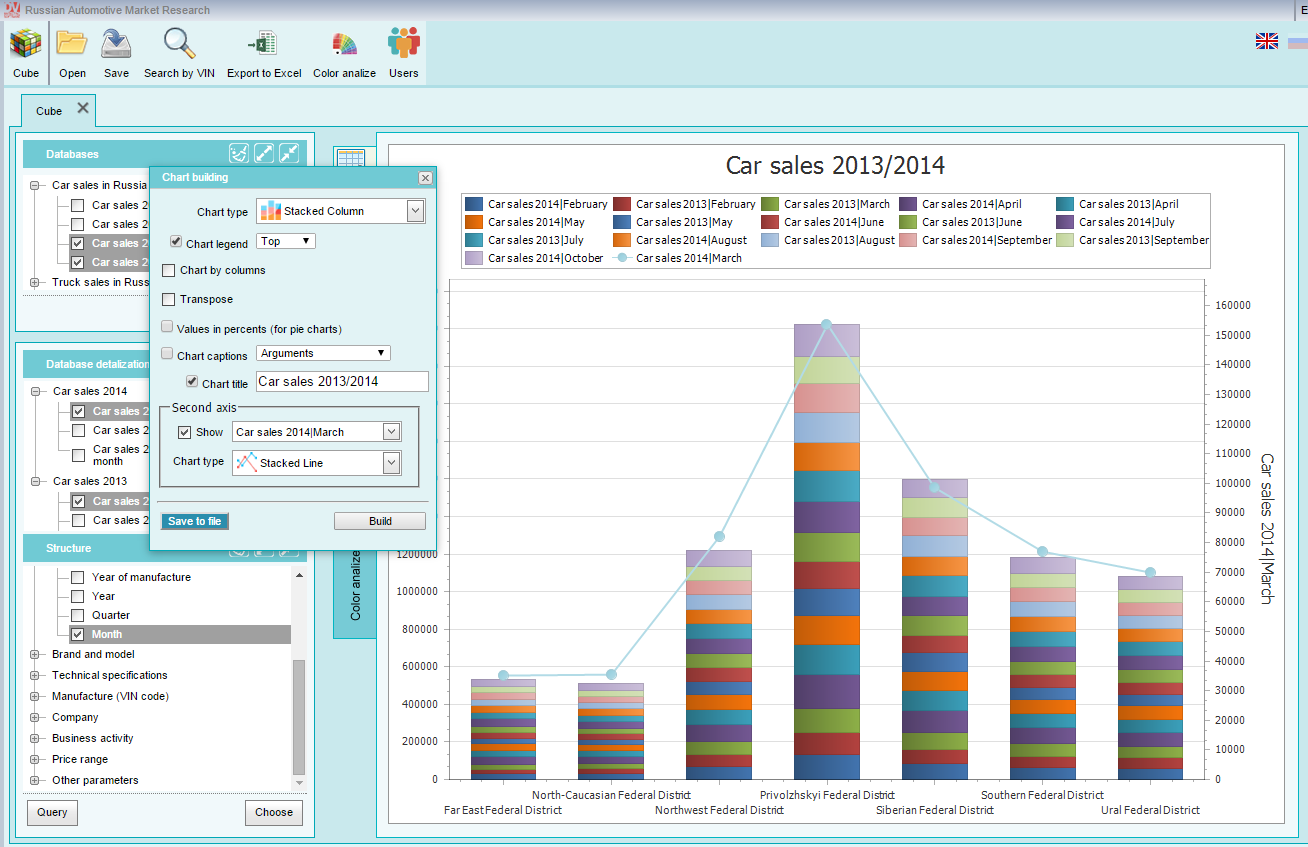

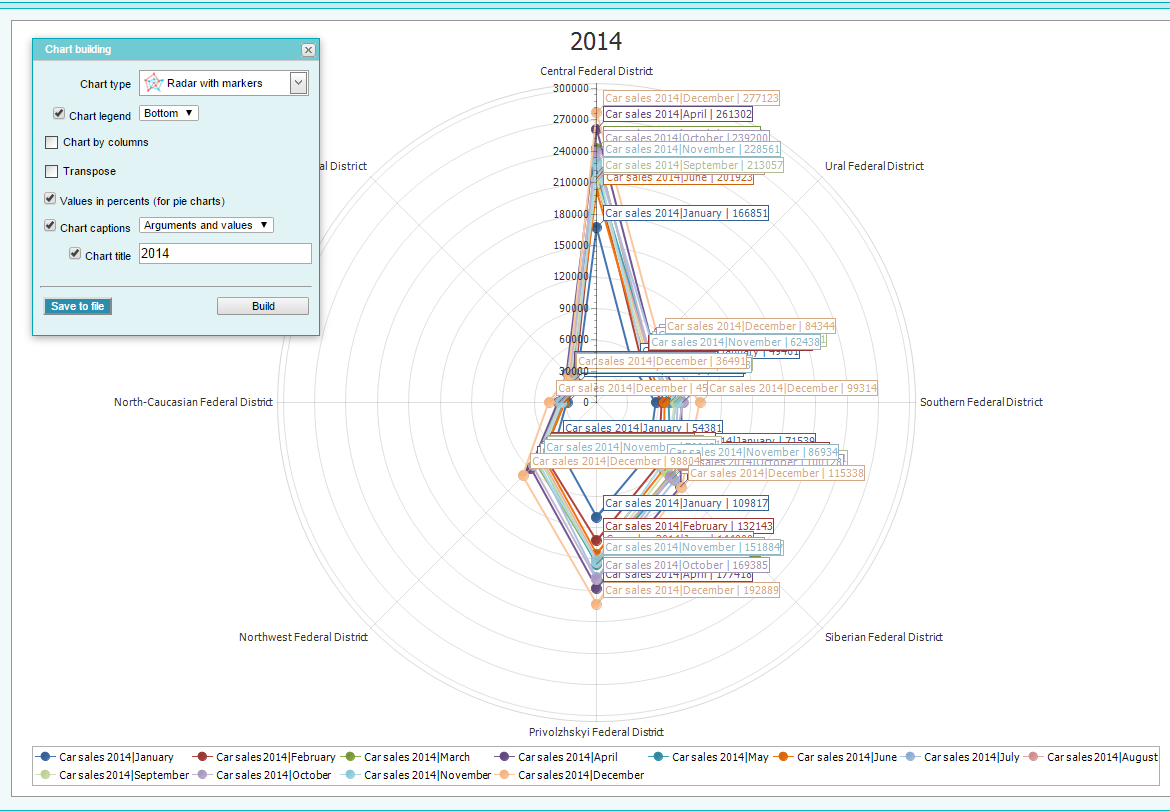

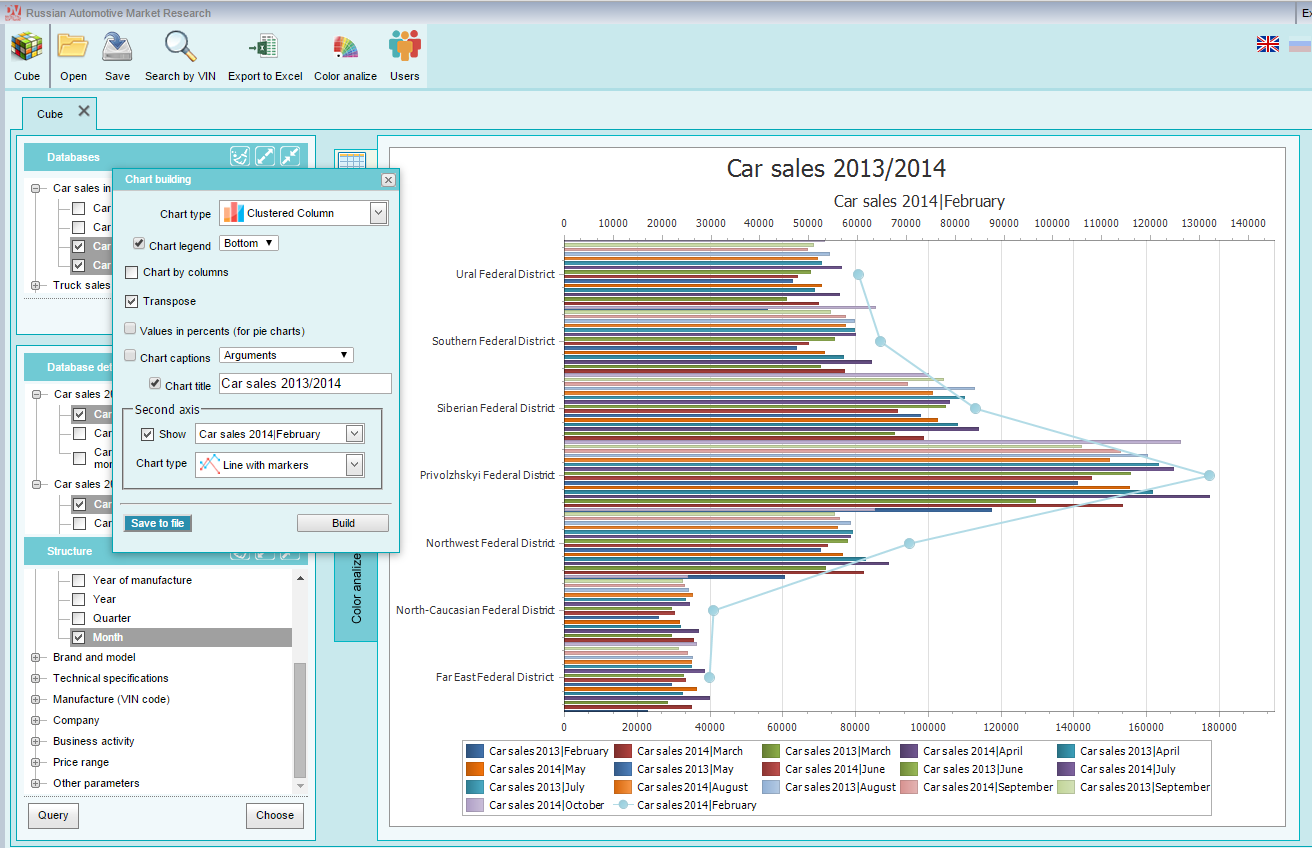

Chart building
|
|
|
|
Software from Devexpress has WebChart component for chart building. Charts can be built programmatically and using connection components PivotGrid and GridView that contain data in tabular form. In the second case, the plotting is trivial, as it does not require construction of chart series and populate them with values, but for this project, this approach proved to be unacceptable because the charts it was necessary to build on a selected block of data in the table, for technology ASP.NET component AspxPivotGrid does not have a built-in feature selection.
The chart building in the project has the following features

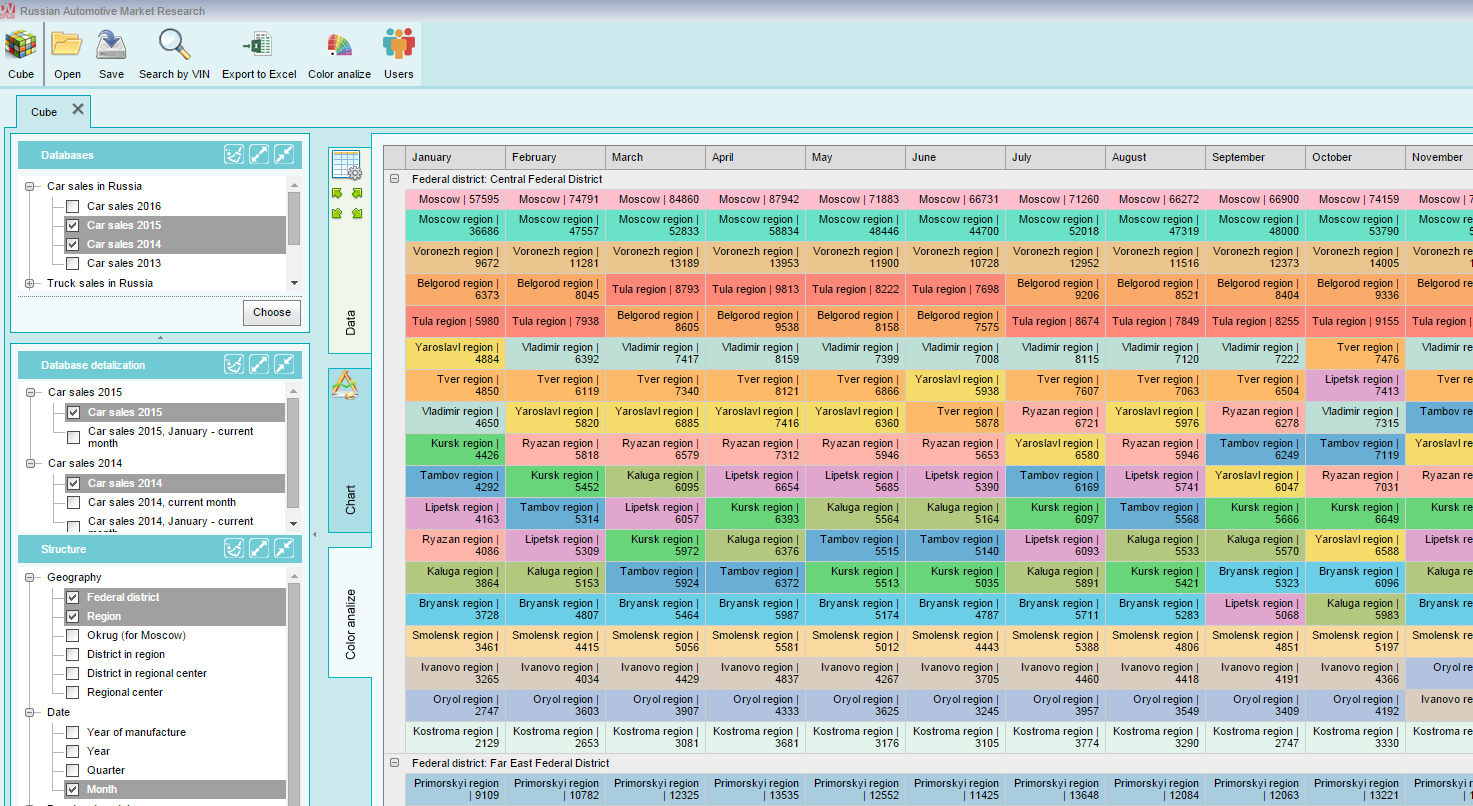

Color analize
|
Cube table has the additional possibility for analysis – colour analysis, the concept of which was developed by project customer. Analyzes all data table, rows and columns with totals are excluded. If you enable data filtering on the number ([Other cell]), it is possible to leave or remove the entry [Other cells] from the analysis. If the table has multiple fields with data that you can use only one by choice, the field data must be in columns of the table. Each row is assigned a specific color, the set of possible colors is stored in the system registry. |
The analysis is sorted in descending order within the column, if there are multiple header fields, the grouping is to sort is by the last field.
The results of the analysis can be exported to MS Excel.

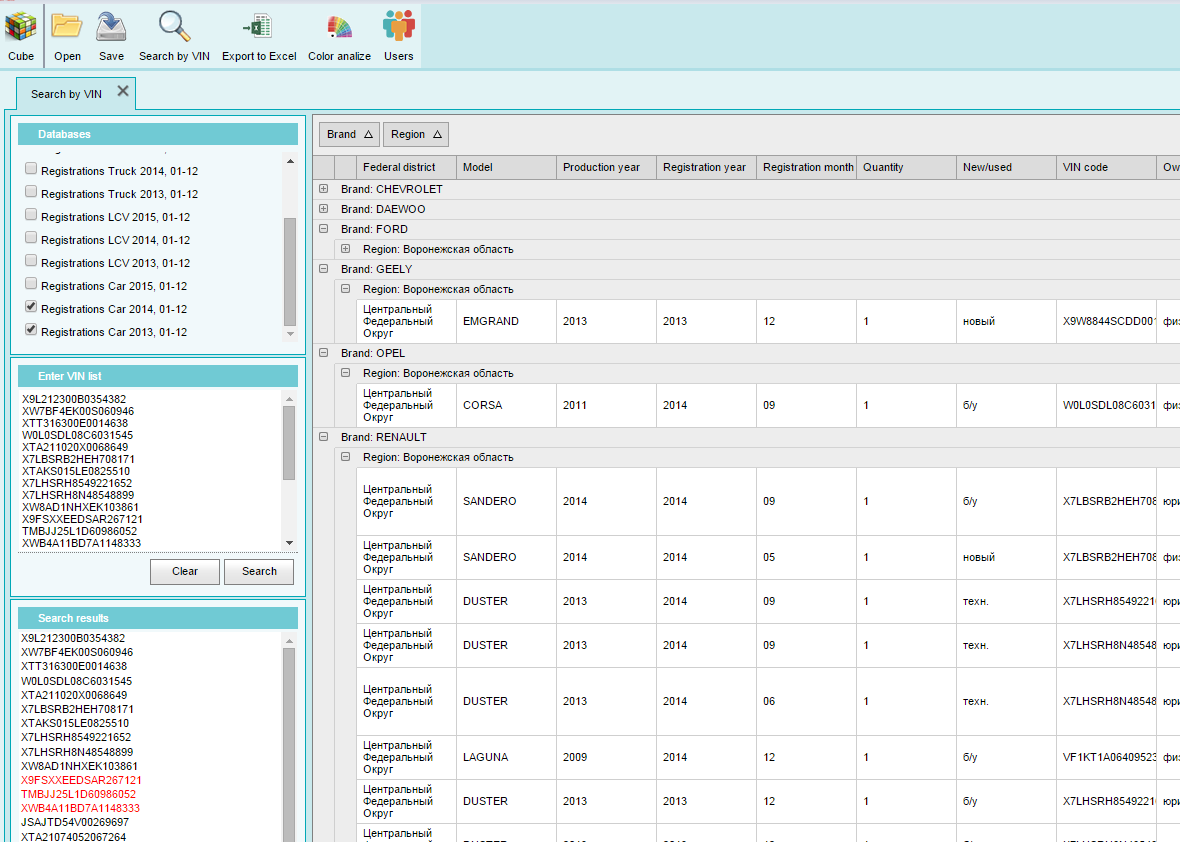

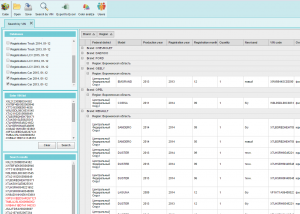

Search by VIN
|
VIN – Vehicle Identification Number. The project customer has databases on sales of vehicles, the bases are divided by years and types of vehicles. This part of the project allows you to search for the code set of VINs in different databases. The search results are placed in the table, the possible group tables for any set of fields. After search you can see the codes that were not found in selected databases. The results can be exported to MS Excel. |
How it works.
|

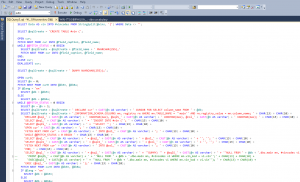

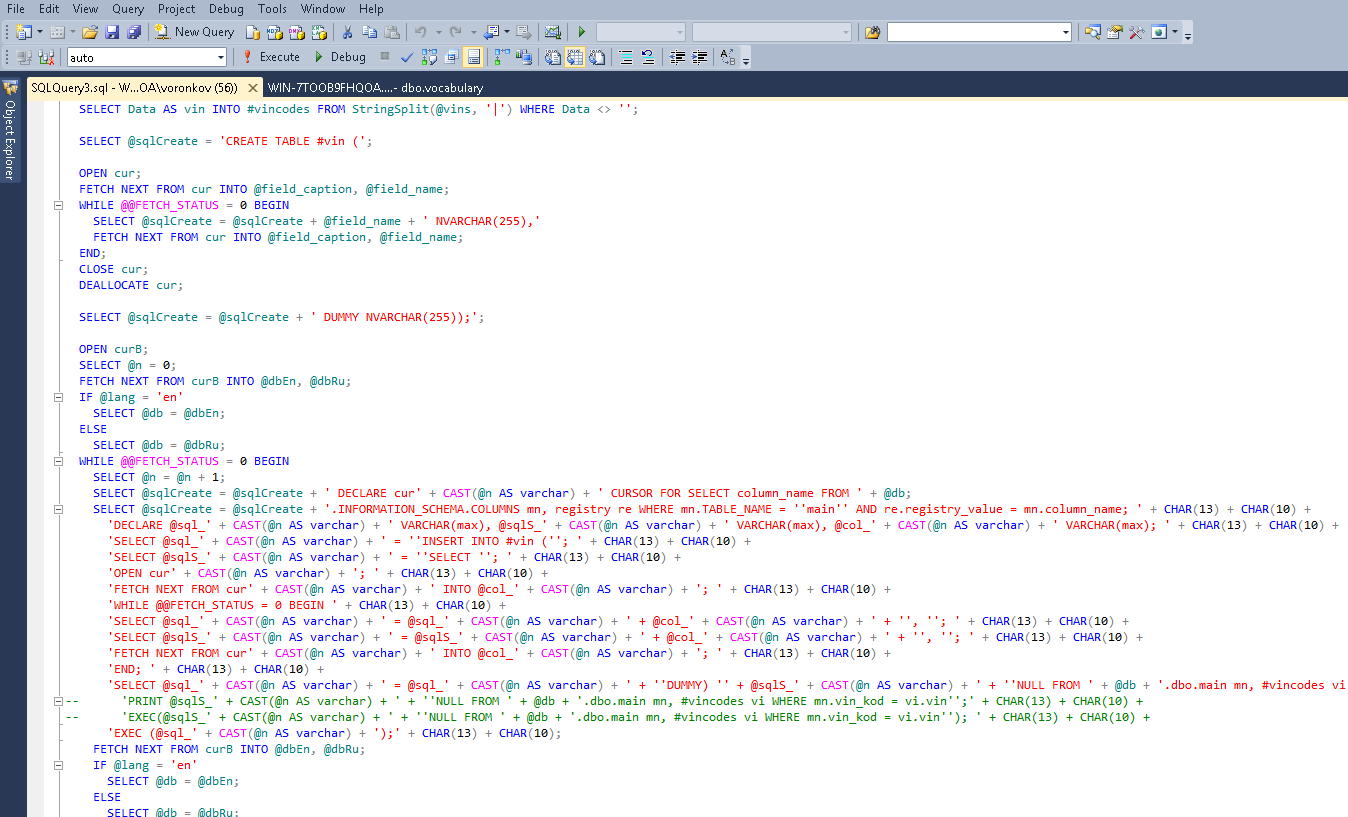

Data on sales of vehicles stored in the database tables MS SQL. The tables is divided by years and types of vehicles. Tables can have different structures depending on the type of vehicle with a set of common fields. In the system registry exists the list of available tables and their structure. When you query data from multiple tables using dynamic SQL is to combine information into one temporary table, which contains the full set of fields from all the tables. To avoid errors when you build the temporary table, the system tables of MS SQL database check to remove the fields that may be incorrectly specified for the analyzed tables. |

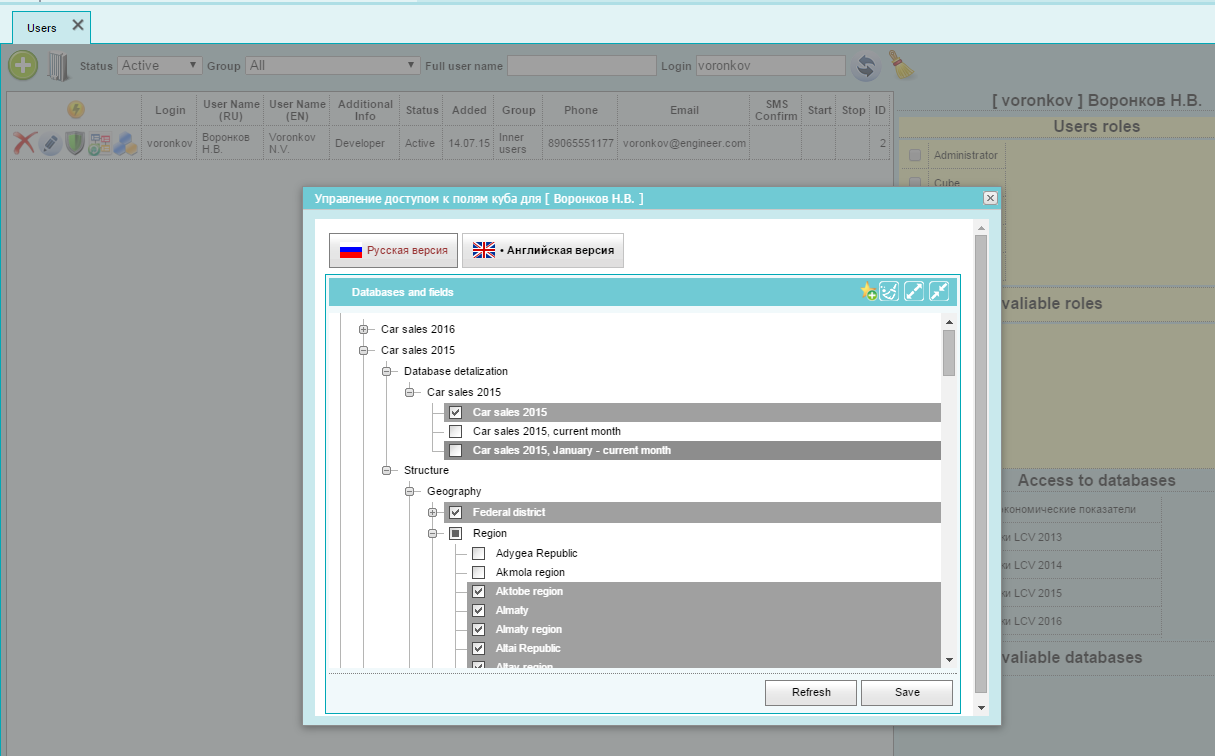

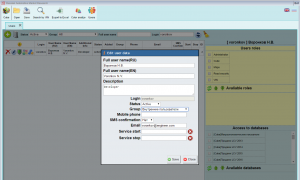

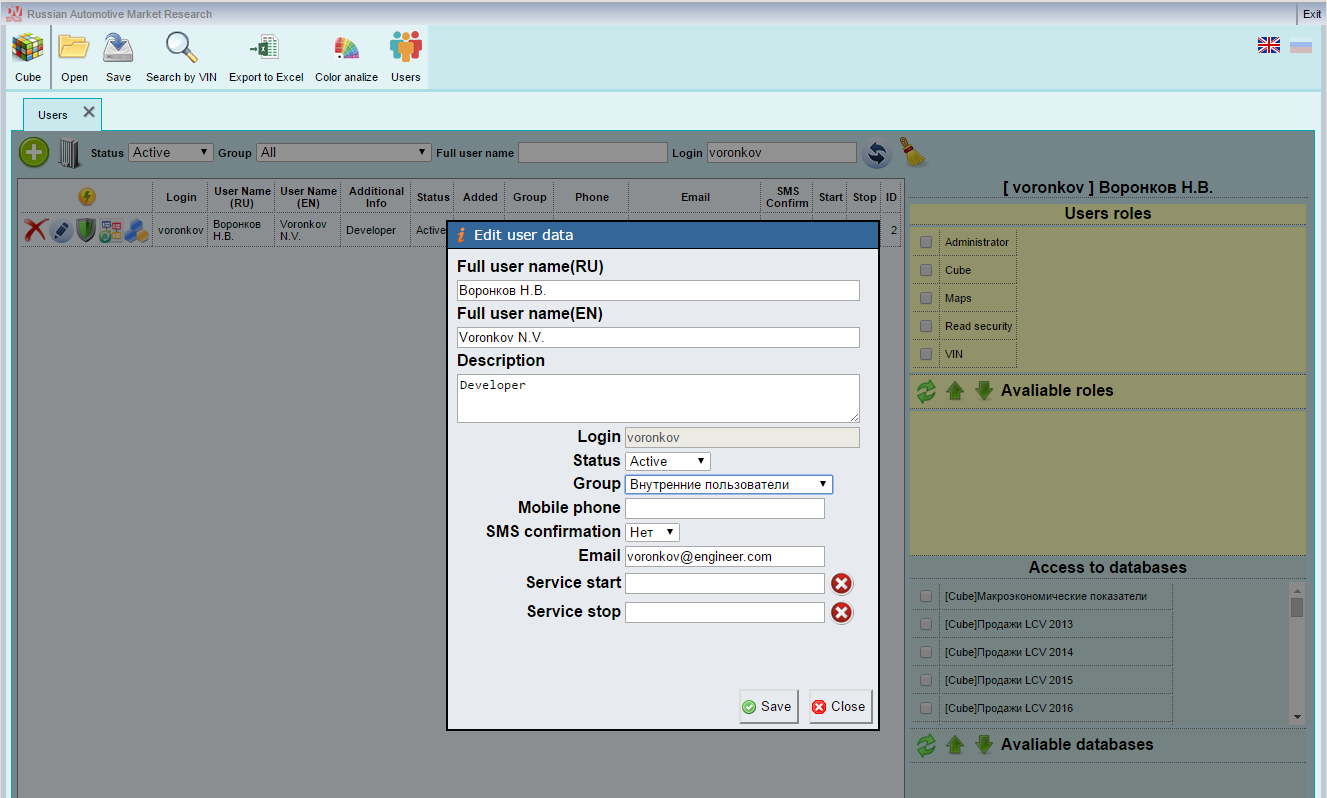

User management
|
The project has following features for user management:
For access to project is using sessions. The user can open only one session, during the session, in one window of a browser it can open several tabs with data, data about the current session is stored in the project database. In the absence of user activity within a certain time of its session closes, for access to the project the user must login again. |
|
